In agriculture, efficiency and convenience are crucial. While ensuring productivity, it is also important to consider the convenience of the tool user. And this SX-CZ60D vehicle-mounted electric sprayer makes it an indispensable tool for modern agriculture with its advanced technology and multi-functional applications.
Features
(1) Structural appearance:

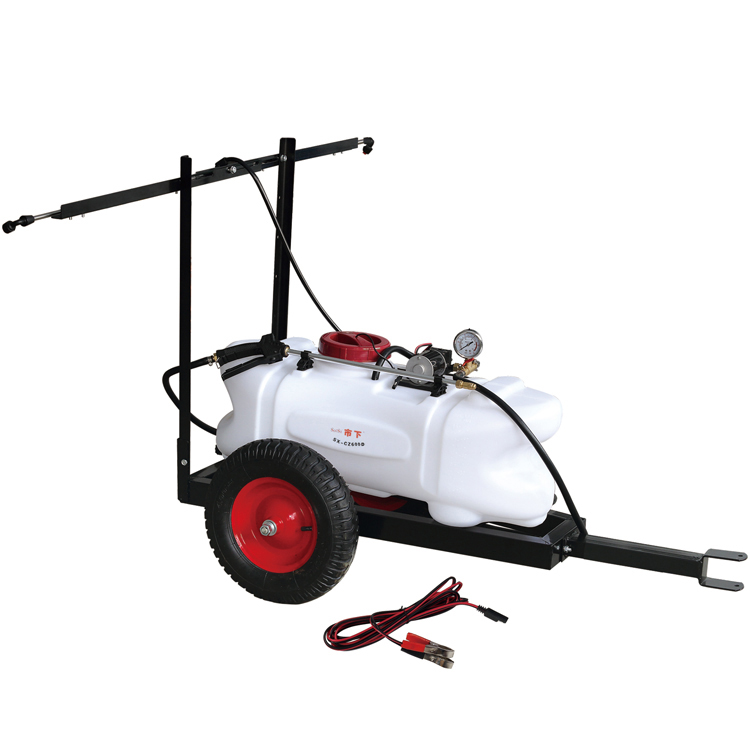

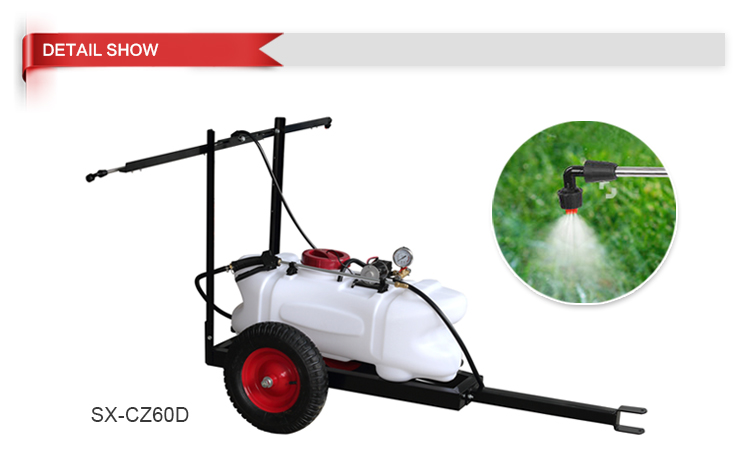

This ATV electric sprayer is available in two main sizes:60 liters and 100 liters, designed to be mounted on an all-terrain vehicle (atv), equipped with a frame and wheels. The chassis has interfaces to connect to various carriers for towing, and the 5-meter hose and power cord greatly increase the operating range. The water tank is equipped with a pressure gauge, which can monitor the air pressure in real time to ensure the safety of use.
(2) Powerful

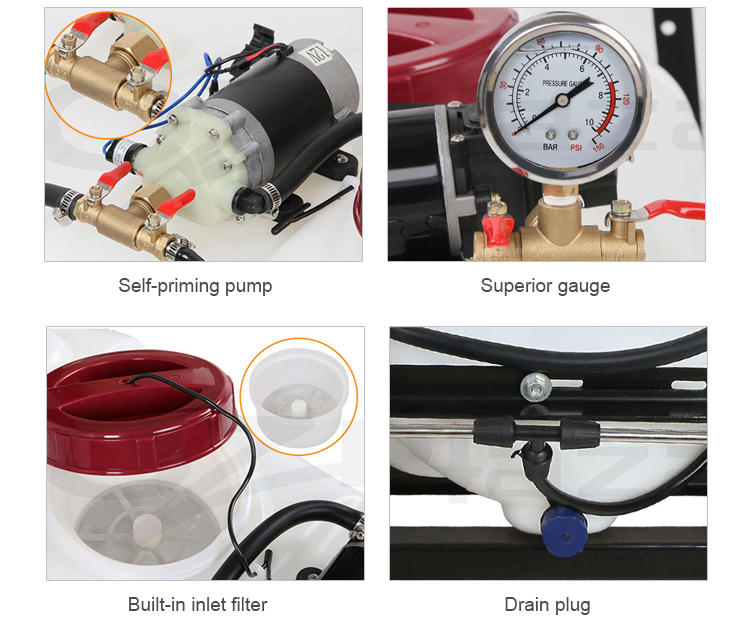

A key advantage of the SX-CZ60D electric sprayer is its high-flow diaphragm pump, which is powered by a 12V power supply to the sprayer liquid pump, providing stable flow and high pressure. This technology not only avoids manual pumping, but also allows the spray bar to reach a flow rate of 2.L/Min and a pressure of 4.5Bar, which fully improves the efficiency of the spraying process.
(3) Durable
The water tank of SX-CZ60D electric sprayer is made of high-density polyethylene plastic, which is rigid, resistant to pesticide corrosion, and has a long service life. The whole machine adopts two-stage filtration device, which can prevent debris from entering the nozzle and ensure the spraying quality.Meanwhile it can preserves the nozzle.
(4) Comfort
ATV electric sprayer is designed with user comfort and convenience in mind. It is lightweight and ergonomically designed to reduce tension and fatigue for the user during prolonged use.And it is easy to operate, making them suitable for users of all ages and physical conditions.
Installation of the machine
（1）The first time you use it, please open the box and check whether the parts in the box with the contents of the packing list, to confirm that there is no error in accordance with the diagrams and then installed.
（2）Place the medicine box on the mounted frame and lock it with 5/16-18X16 screws, then use the strapping tape to tie the medicine box to the frame;
（3）String the spray bar together and lock it with the spray bar nut, then the T-shaped tee in the middle of the spray bar is connected with the connecting pipe;
（4）The assembled spray bar will be pressed into the groove of the spray bar clamp on the beam, and adjust the spray angle, a reasonable spray angle should make the four nozzles in the same plane, and to the outside tilted at a certain angle, at the same time, the nozzle spraying fan and the spray bar at an angle of 5 to 10 degrees, in order to prevent the spraying of spraying, the mist flow sprayed to the frame, and can make the liquid more sprayed to the crop foliage;
（5）The installation of the spray bar should be parallel to the ground, the height should be appropriate. Too low due to the terrain is easy to cause leakage of spraying; too high by the wind impact of fog droplet coverage is not uniform. When spraying, when spraying herbicides and soil treatment, the height of the nozzle from the ground is 0.5m; when spraying insecticides, fungicides and growth regulators, the height of the nozzle from the crop is 0.3m.
