How Pressure Stability Affects Droplet Uniformity in Agriculture Electric Sprayers

Pressure is not only about spray strength. Even small pressure changes can alter how droplets form and reach crop surfaces. In an agriculture sprayer, pump output, system pressure, nozzle flow, and liquid breakup work as one connected process. When pressure stays stable, the nozzle can produce a more repeatable droplet spectrum and more consistent crop coverage. When pressure fluctuates, flow rate and droplet size may change during the same spraying pass.

Battery-powered sprayers reduce pressure variation from manual pumping, but other causes still remain. Pump cycling, battery condition, blocked filters, nozzle selection, and pressure adjustment can all affect stability. This guide explains how pressure stability affects droplet uniformity and shows where pressure problems usually begin. You will also learn how to recognize unstable spraying and maintain more repeatable nozzle performance.

How Pressure Fluctuations Change Droplet Size and Spray Uniformity

Pressure Changes Affect Both Flow and Liquid Breakup

Pressure provides the energy needed to move liquid through a nozzle. Changing pressure therefore changes nozzle flow. However, flow does not increase directly with pressure. For a fixed hydraulic nozzle, flow changes approximately with the square root of pressure. This relationship has an important practical effect. Doubling nozzle flow would require roughly four times the pressure. Large flow changes should therefore not rely on pressure alone.

Pressure also changes how liquid leaves the nozzle. Higher pressure generally creates stronger liquid breakup and usually shifts the spray toward smaller droplets. Lower pressure generally produces a coarser droplet spectrum. It may also affect spray angle and pattern development.

These effects depend on nozzle design and orifice size. Spray liquid properties can also influence atomization. Pressure should therefore never be considered alone, but it remains one major operating variable controlling spray quality.

Unstable Pressure Creates Changing Droplet Conditions

Now consider an agriculture sprayer operating at fluctuating pressure. During a pressure rise, nozzle flow may increase and the spray may contain more fine droplets. During a pressure drop, output falls again and the droplet spectrum may become coarser. The operator now has changing spray conditions during one treatment.

One section may receive slightly more liquid while another receives less. Leaf wetting can also change between neighboring plants. When these fluctuations continue throughout an application, uniform coverage becomes harder to maintain.

Unstable pressure may also change drift risk. Fine droplets generally remain airborne more easily than larger droplets. If the pressure repeatedly rises and falls, drift potential can therefore change during the same spraying pass.

Average pressure can also be misleading. A gauge may show an acceptable value most of the time, while short pressure fluctuations still influence nozzle behavior. Operators should therefore pay attention to pressure movement rather than checking only one pressure reading.

Where Pressure Instability Comes From in an Agriculture Electric Sprayer

Pump Cycling, Pressure Regulation, and Nozzle Demand

Pressure problems often begin with the relationship between the pump and nozzle. An electric diaphragm pump produces flow, while the nozzle creates resistance to that flow. A pressure regulator, bypass system, or pressure switch then helps control system pressure.

These components must work within compatible operating ranges. If nozzle demand is very low compared with pump capacity, the pump may cycle frequently. Pressure can rise until the switch stops the pump, then fall until the pump starts again. The result may be visible pulsing at the nozzle.

Incorrect pressure adjustment can cause similar problems. Increasing the regulator setting does not automatically create better spraying. The system still needs enough flow and suitable nozzle resistance to maintain the selected pressure.

Some agriculture electric sprayers use diaphragm pumps together with adjustable pressure controls. These features help operators adapt output for different tasks. However, their benefit depends on correct pump, nozzle, and pressure matching.

Battery Condition, Restrictions, and Leaks

The nozzle is not always responsible when pressure becomes unstable. A weak electrical supply can reduce pump performance, especially during longer spraying periods. Battery condition therefore deserves attention when an agriculture knapsack electric sprayer gradually loses spray strength.

Restrictions inside the liquid circuit can create similar symptoms. A partially blocked filter may limit pump supply. A clogged nozzle passage can disturb flow at the outlet. Kinked hoses can also increase resistance and reduce available flow.

Operators should also inspect connections and seals. Small leaks may not immediately stop spraying, but they can reduce system efficiency. Air entering certain parts of the liquid path may also contribute to irregular delivery.

Common causes worth checking include:

• Low battery charge or unstable electrical supply.

• Dirty suction or inline filters.

• Partially blocked nozzle openings.

• Kinked or restricted hoses.

• Loose fittings or leaking seals.

• Incorrect pressure-regulator adjustment.

• Pump cycling caused by unsuitable nozzle demand.

• Worn pump components.

These problems can appear as intermittent spray weakness instead of complete equipment failure. This makes diagnosis more difficult. Operators sometimes respond by increasing pressure, even though the original issue remains inside the system.

Matching Pressure to the Nozzle Instead of Assuming Higher Pressure Is Better

Keep the Nozzle Within Its Intended Operating Range

Operators sometimes treat pressure as the easiest way to improve spray performance. When coverage looks weak, they increase it. When spray reach appears short, they increase it again. This approach may create new problems.

Every nozzle is designed to operate within a suitable pressure range. Too little pressure may prevent the expected spray pattern from developing. The fan angle can narrow, and distribution may become less reliable. Excessive pressure can create more fine droplets and increase drift potential.

The goal is therefore not maximum pressure. It is an operating pressure suitable for the selected nozzle and application. Once that combination is established, keeping the pressure stable becomes more important than continually adjusting it.

A nozzle change may also be more appropriate than a large pressure adjustment. If substantially more flow is required, selecting another orifice size can often provide better control. This approach avoids forcing one nozzle far outside its practical operating range.

Balance Coverage, Penetration, and Drift Risk

Droplet size involves trade-offs. Finer droplets can increase the number of droplets available from the same spray volume. They may improve surface coverage in some treatments. However, they are generally more vulnerable to wind movement and evaporation.

Coarser droplets usually reduce drift risk. They carry more mass and are less easily moved by air. However, the number of droplets per unit volume may decrease. Coverage characteristics may therefore change.

This means operators should first decide what droplet behavior their application requires. They can then choose a suitable nozzle and pressure combination. Once established, stable pressure helps preserve that intended balance.

Other variables still matter. Crop structure, target surface, formulation, weather, nozzle distance, and operator movement can all influence deposition. Pressure stability does not replace these factors. It simply prevents another major variable from changing unnecessarily.

How to Tell Whether Pressure Instability Is Affecting Spray Quality

Look for Changes During Continuous Spraying

Operators do not need laboratory equipment to identify every pressure problem. Several symptoms can be observed during normal operation. The most obvious sign is a spray pattern that repeatedly becomes stronger and weaker while the trigger remains open.

Visible pulsing is another useful clue. Spray reach may increase and decrease in a repeating cycle. Fine mist may also appear during stronger moments and become noticeably coarser during weaker moments.

A pressure gauge can make these changes easier to identify. It should not be checked only immediately after starting the pump. Operators should watch it while the nozzle sprays under normal working conditions. Repeated rises and falls can indicate cycling or unstable regulation.

Field coverage may provide additional clues. Similar plants may show noticeably different wetting levels, even though the operator maintained similar speed and distance. However, uneven coverage alone does not prove pressure instability.

Several other factors can produce similar results. A partially blocked nozzle may distort one side of the pattern. A worn nozzle may discharge more liquid than expected. Changing wand distance or walking speed can also create uneven deposition.

Check Pressure and Nozzle Output Before Changing Settings

A simple test can help separate pressure problems from other causes. Clean water is normally sufficient for basic equipment checking. The aim is to observe pressure, spray pattern, and measured flow under controlled conditions.

1. Fill the sprayer with clean water.

2. Install a clean nozzle suitable for the sprayer.

3. Set the normal working pressure.

4. Spray continuously under normal operating conditions.

5. Watch the pressure reading for repeated movement.

6. Observe whether the spray pattern changes at the same time.

7. Collect nozzle output for a fixed period.

8. Compare the measured volume after cleaning filters.

9. Inspect hoses, fittings, and nozzle condition if instability remains.

Flow measurement is valuable because visual judgment has limits. A spray may look acceptable while actual output differs from expectations. Measuring discharge over the same time interval makes comparisons easier. Nozzle wear should also be considered separately. A worn or enlarged orifice can produce excessive flow while system pressure remains stable. Increasing or reducing pressure cannot correct physical nozzle wear.

Comparing several measurements can reveal the difference. Stable pressure combined with excessive flow often points toward nozzle condition. Changing pressure combined with changing flow suggests a system-level issue.

How to Maintain More Consistent Pressure and Droplet Output

Stabilize the System Before Fine-Tuning the Spray

Spray quality adjustments should begin only after the equipment operates correctly. Otherwise, operators may compensate for one fault by creating another. Increasing pressure to overcome a dirty filter is a common example.

Start by confirming adequate battery charge and normal pump operation. Then inspect filters, hoses, fittings, and nozzle condition. Once the liquid path is clear, set the pressure required for the selected nozzle.

• A useful maintenance sequence is:

• Confirm adequate battery charge.

• Check the pump for abnormal cycling.

• Clean tank and inline filters.

• Inspect hoses for kinks or damage.

• Check fittings and seals for leaks.

• Clean and inspect the nozzle.

• Set the required working pressure.

• Confirm actual nozzle output.

This sequence helps isolate mechanical problems before pressure adjustments begin. It also makes calibration more meaningful because the equipment starts from a known operating condition.

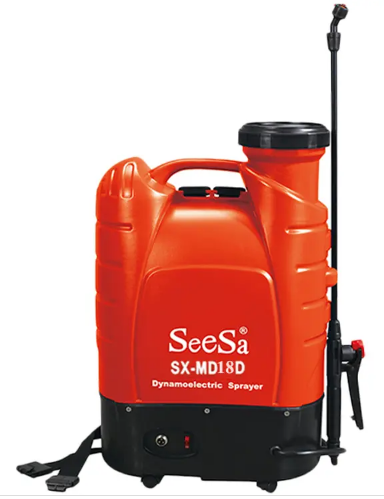

An agriculture knapsack electric sprayer may be used during repeated field tasks. Filters can gradually collect residue during those operations. Battery voltage can also decline during extended work. Periodic checking is therefore more reliable than assuming the initial setup remains unchanged.

Recheck Stability When Operating Conditions Change

Pressure settings should be verified whenever the spraying setup changes significantly. Installing another nozzle can change flow demand. A different nozzle size may also change pump cycling behavior. Changing spray liquids may affect system behavior as well. Liquid viscosity and formulation can influence flow and atomization. Operators should follow the chemical label and nozzle guidance for each application.

Pressure should also be checked if output changes during a job. A noticeable loss of spray strength should trigger inspection rather than an immediate pressure increase. The same principle applies when the spray suddenly becomes much finer. Measured nozzle discharge provides a useful reference. Operators can compare current output against the expected nozzle output at the selected pressure. Large differences deserve investigation before spraying continues.

Pressure controls and reliable electric pumps can support consistent spraying. However, they cannot compensate for an unsuitable nozzle, clogged filter, worn component, or poor calibration. The whole system must work together. The practical sequence is straightforward: Choose the required droplet behavior → select the appropriate nozzle → establish the correct pressure → verify pressure stability → confirm actual output

Conclusion

Maximum pressure alone does not determine spray quality. Stable pressure helps maintain predictable nozzle flow, droplet distribution, coverage, and drift control. Operators should match the nozzle first, set suitable pressure, then verify output stability. If spraying changes unexpectedly, inspect the delivery system before raising pressure.

Shixia Holding Co.,Ltd. provides electric sprayer solutions designed for controlled spraying and reliable atomization. Its product range and customer support help agricultural users achieve more consistent application performance.

FAQ

Q: What does pressure stability mean in an agriculture sprayer?

A: Pressure stability means the agriculture sprayer maintains a consistent working pressure during spraying. This helps the nozzle keep flow, spray pattern, and droplet distribution more predictable.

Q: How does pressure affect droplet size in an agriculture sprayer?

A: Higher pressure generally produces finer droplets from the same nozzle. Lower pressure usually creates larger droplets. Stable agriculture sprayer pressure helps maintain a more consistent droplet spectrum.

Q: Why does pressure fluctuate in an agriculture electric sprayer?

A: An agriculture electric sprayer may fluctuate because of pump cycling, low battery power, blocked filters, restricted hoses, leaking connections, incorrect pressure settings, or unsuitable nozzle demand.

Q: Is stable pressure better than higher pressure for an agriculture sprayer?

A: Stable pressure is usually more useful than simply increasing pressure. An agriculture sprayer needs suitable pressure for its nozzle, target coverage, application rate, and desired droplet behavior.

Q: Can unstable pressure increase agriculture sprayer operating costs?

A: Yes. Unstable agriculture sprayer output can contribute to uneven application and unnecessary spray use. Persistent high pressure may also increase nozzle wear and require additional adjustments.

Q: How can I troubleshoot unstable pressure in an agriculture knapsack electric sprayer?

A: Check battery charge, filters, hoses, fittings, pump cycling, and nozzle condition. Then test the agriculture knapsack electric sprayer using clean water and confirm pressure and actual nozzle output.
