How To Calibrate An Agriculture Sprayer for Even Coverage And Less Waste

Treating equipment calibration as a tedious chore is a costly mistake. You should view it as a critical financial and compliance audit for your entire farming operation. Even minor nozzle wear or slight pressure discrepancies quickly lead to massive chemical waste. These hidden errors cause devastating crop burn. They also leave your fields vulnerable to inadequate pest control. You simply cannot afford to guess when applying expensive inputs.

This guide provides a practical, math-simplified framework to fix these hidden errors. We will show you how to bring any agriculture sprayer into strict regulatory and agronomic compliance. You will learn proven techniques to measure output accurately. We eliminate complex calculations to help you secure perfect field coverage. Implementing these strategies will drastically reduce your input costs and protect your surrounding environment.

Key Takeaways

• Industry standards (USEPA/USDA) mandate an error margin of no more than 5% between target and actual application rates.

• Nozzles showing a 10% output deviation from manufacturer baselines must be replaced to prevent overlapping and product waste.

• The "1/128th acre method" eliminates complex math for boom sprayers: ounces collected directly equal Gallons Per Acre (GPA).

• Adjusting pressure is highly inefficient for changing output volume (requires 4x pressure for 2x output) and severely increases drift risk.

Baseline Metrics: Evaluating Agriculture Sprayer Efficiency and Waste

Poor calibration silently drains your farm's profitability. You must define the true cost of these hidden mechanical errors. Over-application wastes incredibly expensive chemical inputs. It also dramatically increases groundwater contamination risks. Regulators monitor these environmental impacts closely. Conversely, under-application fails to suppress weeds or pests. This failure forces you into costly re-spraying operations. You lose both time and diesel fuel in the process.

You need strict success criteria to prevent these losses. The USEPA and USDA establish a clear benchmark for success. A properly calibrated system must operate within a ±5% margin of the chemical label’s target rate. You fail the compliance audit if your output exceeds this tight margin. Precision agriculture demands this level of operational accuracy. Every gallon must land exactly where intended.

Certain events require immediate recalibration. You must calibrate your equipment at the beginning of every spraying season. Do not rely on last year's data. You must also recalibrate after performing pump or hardware maintenance. Changing chemical viscosity alters your flow rates significantly. Switch your baseline settings when moving from thin herbicides to thick fertilizers. Finally, recalibrate immediately upon observing irregular field patterns. Striping or uneven weed kills indicate a failing delivery system.

Pre-Calibration Inspection: Identifying Hardware Tolerances

You cannot calibrate a broken system. Before testing your agriculture sprayer, you must establish a mechanical baseline. Start by filling the main tank half-full using only clean water. Never use active chemicals during the testing phase. Engage the pump to test operating pressure stability. Watch the pressure gauge closely. A bouncing needle indicates trapped air or pump wear. Walk the entire boom length to check for line leaks. Fix all dripping hoses before proceeding.

You must rigorously enforce the 10% wear threshold. Catalog specifications dictate exactly how much fluid a new nozzle should emit. You need to measure your current baseline nozzle output. Compare this measured output against the manufacturer’s original catalog data. Hardware naturally degrades from pumping abrasive chemicals. If any individual nozzle deviates by more than 10% from the new specification, discard it immediately. Worn orifices create overlapping spray patterns and waste expensive product.

Filtration dictates steady flow rates. You must inspect your entire filtration hierarchy. Remove all inline strainers and tip screens.

• Soak dirty filters in warm, soapy water.

• Scrub the mesh gently using a soft-bristled toothbrush.

• Blow compressed air through the nozzle tips.

• Never insert wire, pins, or metal objects into the orifice.

Metal objects permanently scratch the precision-machined plastic or brass. A microscopic scratch ruins the spray pattern instantly. Clean hardware ensures your upcoming math remains perfectly accurate.

The 1/128th Acre Method for Boom Sprayers (US Standard)

Complex math often discourages operators from calibrating frequently. The 1/128th acre method completely eliminates these complicated formulas. You only need to understand the underlying logic. A standard US gallon contains exactly 128 fluid ounces. By shrinking your test area to 1/128th of an acre, the math simplifies perfectly. This fraction equals 340 square feet. Because of this proportional scale, the ounces collected directly equal your Gallons Per Acre (GPA).

You must determine your exact test distance first. Measure the spacing between your nozzles in inches. Use a simple formula to map this spacing to your field driving distance. The formula is: Distance (ft) = 340 / (Nozzle Spacing in inches / 12). We provide a standard reference table below to speed up your setup.

Follow strict execution steps to capture accurate time and volume data. Keep your tractor in the exact gear you will use for spraying.

1. Mark the determined test distance in your field using flags.

2. Drive the measured distance at your operational speed and RPM.

3. Record the exact time it takes to travel between the flags in seconds.

4. Park the tractor and keep the engine running at the same RPM.

5. Engage the pump at your target operational pressure.

6. Collect clean water from a single nozzle for that exact recorded time.

7. Use a highly legible, ounce-graded measuring cup for collection.

Read the fluid ounces in your cup at eye level. The fluid ounces caught precisely dictate your field GPA. If you catch 15 ounces, your machine applies exactly 15 GPA. You have successfully calibrated your system without a calculator.

Calibration Frameworks for Boomless and Backpack Models

Boom sprayers rely on narrowly spaced nozzles. Boomless sprayers cast a massive, wide-angle pattern. You must adjust your mathematical logic for this wider coverage. Boomless systems use the "1/8th Acre Method" instead. You determine the test distance by dividing 5,460 by your total spray width in feet. For example, a 30-foot spray width requires a 182-foot test run. The collection method also scales up. You collect the output in pints rather than ounces. The total pints collected precisely equal your GPA.

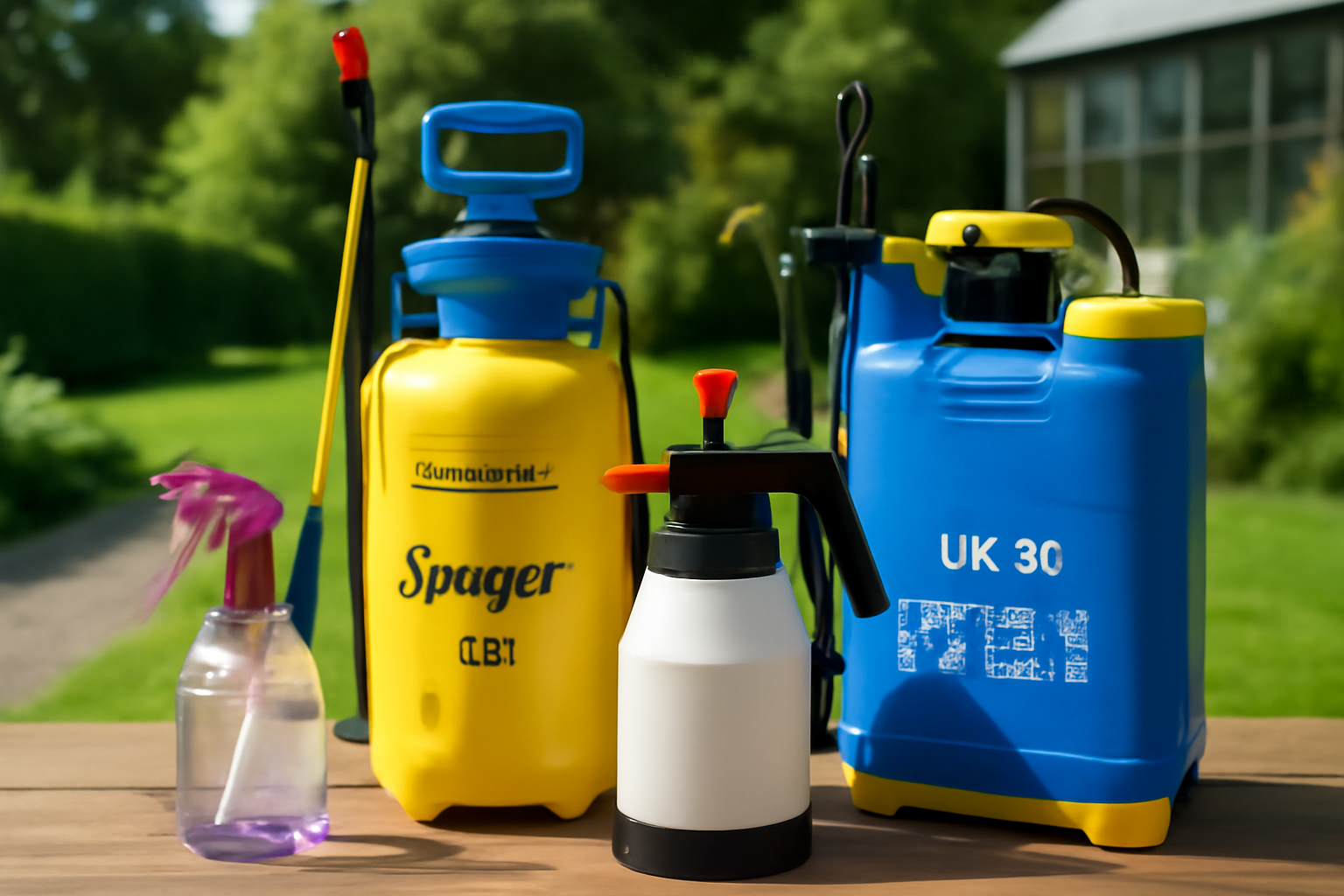

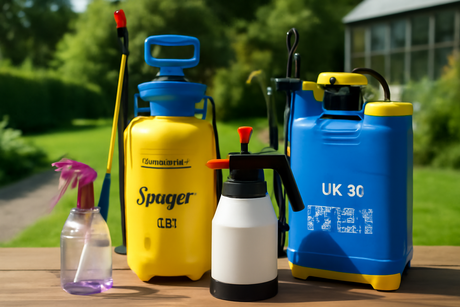

Backpack or knapsack sprayers introduce a critical human element. The machine does not control the speed. You control the walking pace. We call this the behavioral variable. Your walking speed must remain perfectly consistent. Your wand technique must also match field conditions exactly. A side-to-side pendulum swing covers differently than a side-fixed walking style. You must replicate your exact field behavior during the testing phase.

You also need to scale your backpack calibration based on the chemical label. Labels often differ between small garden areas and large agricultural plots.

• Small Area Application: Turf and garden labels often use rates per 1,000 square feet. Mark a 1,000 sq ft zone. Spray it with water. Measure how much water you used. Cross-multiply this volume against your total yard size.

• Field Scale Application: Large agricultural labels require the GPA method. Use the 1/128th acre method (340 square feet). Spray the test zone. Collect the output for the same duration. The ounces equal your GPA.

Match your method to your product label to avoid dangerous concentration errors.

Correcting Output Errors: Pressure, Speed, or Nozzles?

Your initial test will likely fall outside the 5% margin. You need an evaluation framework to correct these output errors properly. Operators often choose the wrong adjustment method. Choosing poorly leads to severe droplet drift. You have three variables to manipulate: pressure, speed, and nozzle size. You must understand the limitations of each.

We present a fast-reference chart for your adjustment strategy.

Adjusting pressure works only for minor tweaks. The physics of fluid dynamics strictly limit this method. The square root rule governs flow rates. You cannot double your output by simply doubling the pressure. You must actually quadruple the pressure to achieve twice the volume. We strongly warn against doing this. High pressure atomizes the liquid into fine mist. This mist drifts easily into neighboring fields.

Changing your driving speed handles moderate tweaks effectively. Speed shares a direct inverse relationship with application rates. Halving your tractor speed immediately doubles your application rate. Conversely, driving twice as fast cuts your GPA in half. You must note the operational limits of your field terrain. Muddy or uneven ground restricts your safe driving speeds. Do not compromise tractor safety to hit a GPA target.

Nozzle replacement remains your best tool for major adjustments. We position nozzle swapping as the safest method available. It represents the most precise way to significantly alter application rates. Changing the orifice size does not compromise your optimal droplet size. It keeps you in full drift compliance while hitting your target volumes accurately.

Metric Alternatives: The 100-Meter Formula (L/ha)

Many international operators utilize metric units exclusively. Converting gallons to liters introduces unnecessary friction. We provide a straightforward calculation framework for global scaling. This metric alternative relies on measuring Liters per Hectare (L/ha). It completely bypasses the 1/128th acre logic. You calculate precise application rates using a standardized running track method.

You must set up a 100-meter test track. Measure exactly 100 meters on field terrain. Drive this course at your intended working speed. Record the time it takes to cross the finish line. Park the equipment safely. Collect the output from a single nozzle for that exact duration. You must measure this captured liquid in Liters. Using a graduated cylinder ensures high accuracy.

Operators using standard European equipment benefit from a multiplier shortcut. Most modern booms feature a standard 50cm (500mm) nozzle spacing. If your machine matches this spec, apply a simple mathematical shortcut. Multiply your captured Liter output by 200. This calculation instantly yields your total L/ha rate. For instance, if you catch 0.5 Liters, your application rate is precisely 100 L/ha.

Row-crop mapping requires a slightly different approach. Banded spraying targets the crop directly rather than broadcasting. You calculate based on rows per hectare rather than raw square area. You must determine how many rows fit inside a standardized block. A 0.9m row width equals roughly 111 rows per 100m block. Multiply your single-row volume by the total row count. This isolates the treated acres and prevents massive over-purchasing.

Conclusion

Routine calibration protects your agricultural investment profoundly. Regular calibration transforms your equipment from a potential liability into a precision instrument. You eliminate chemical waste and protect sensitive groundwater systems entirely. Strict measurement guarantees your crops receive exactly what they need to thrive.

You must document all your final calibration settings. Record your gear selection, engine RPM, operating pressure, and nozzle type. Writing this down creates a reliable baseline for the entire season. It prevents guesswork during stressful planting windows.

We urge you to conduct a baseline water-test immediately. Run this test before loading any active chemicals into your tank. Secure your financial margins today by optimizing your equipment for perfect field coverage.

FAQ

Q: Why do I need to calibrate multiple times a season?

A: Abrasive chemicals cause microscopic wear on your nozzles every time you spray. This wear subtly widens the orifice over time. An enlarged orifice increases flow rates invisibly. This gradual increase leads to severe chemical over-application and rising input costs.

Q: Can I just replace the one nozzle that fails the 10% test?

A: No. If one nozzle demonstrates severe wear, the others are likely close behind. They all experience the same pumping pressure and chemical abrasion. Replacing the entire boom simultaneously prevents uneven spray patterns and ensures uniform crop protection.

Q: How does a banded application change my chemical calculations?

A: Banded spraying focuses only on the specific crop row. It leaves the middle area untreated. You must calculate the actual treated acres using the ratio of band width to row spacing. This prevents massive over-purchasing of concentrated chemicals.
