The SeeSamicro sprayer irrigation kit is a versatile, all-in-one automatic watering solution designed for home gardens, balconies, vegetable gardens, and flower beds. It stands out for low water consumption, effortless installation, and wide compatibility. When paired with a water timer valve, the system delivers fully automatic irrigation, perfectly solving common gardening troubles such as time-consuming manual watering, uneven water distribution, and unattended plants during travel or work trips.
1. Pre-Installation Preparation
Proper pre-installation planning avoids rework, water leakage, and uneven irrigation later. You only need a few minutes to finish the following three steps.

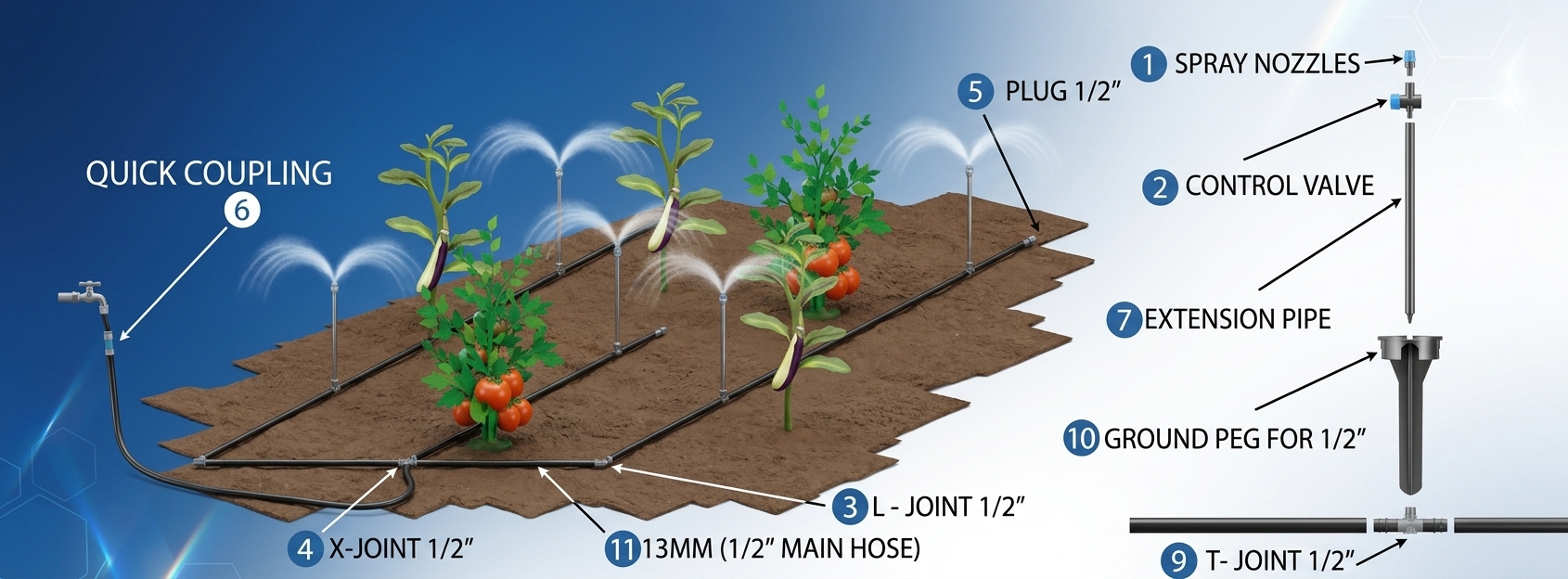

• Rotary nozzles and atomizing micro spray nozzles
• 1/2 inch fittings: T-joint, L-joint, cross joint, end plug
• Extension pipes, ground pegs, quick coupling
• Inline filter and control valve
• Optional: Automatic water timer
Before installation, check all pipes, nozzles, and connectors for cracks, damage, or missing parts.
1.2 Scientific Site & Layout Planning
• Select a stable household faucet as the water source and reserve enough space for later filter cleaning and maintenance.
• Divide your space into independent irrigation zones: balcony potted plants, garden lawns, vegetable plots, and flower areas.
• Arrange pipelines along flower bed edges, wall corners, and garden paths; avoid frequently stepped areas and dense plant roots.
• Reasonable nozzle spacing: 1–2m for atomizing nozzles, 2–3m for rotary nozzles. Keep 30%–50% overlapping spray coverage to eliminate irrigation dead zones.
1.3 Basic Pre-Check
• Seal loose faucet threads with Teflon tape to prevent water leakage.
• Normal household water pressure (0.15–0.3MPa) is sufficient; install a small booster pump if water pressure is too low.
• Remove stones, weeds, and sharp objects along the pipeline route to avoid piercing the PE hose.
2. Step-by-Step Installation Guide
This micro spray irrigation kit adopts a quick plug-in design, no professional tools, no welding, and no complex skills required. Beginners can complete the whole installation in 15 to 30 minutes.
Step 1: Connect Water Source and Front Protection
1. Install the quick coupling firmly on the household faucet.
2. Connect parts in standard order: Faucet → Filter → Control Valve → Water Timer.
3. Install the filter according to the arrow direction of water flow. The inline filter effectively blocks sand, sediment, and impurities to protect nozzles and pipelines from clogging and extend system service life.
Step 2: Lay Main Hose and Branch Pipes
1. Lay the main PE hose following the planned route.
2. Fix the pipeline every 1–1.5 meters with ground pegs to prevent displacement by wind or stepping.
3. Cut the hose to the required length and use tees and elbows to separate branch pipes for different irrigation zones.
4. For outdoor gardens, bury the pipe 10–15cm underground; in cold northern regions, bury over 30cm for frost protection and anti-aging.
Step 3: Install and Adjust Micro Spray Nozzles
• Balcony potted plants: Place drippers close to plant roots to avoid water splashing on the floor.
• Garden lawns & vegetable gardens: Adjust nozzles to horizontal spraying, avoid spraying walls, roads, and outdoor furniture.
• Flower beds: Adjust nozzle height to ensure soft mist covers plants gently without damaging leaves or washing away soil.
Step 4: Water Test & System Debugging
1. Turn on the water source and run the system for 5 minutes to exhaust air and residual dirt inside the pipes.
2. Carefully check all joints, pipes, and nozzles for water leakage.
3. Adjust nozzle angles to achieve uniform irrigation coverage.
4. Clean clogged nozzles with running water or gently unclog tiny holes with a fine needle.
3. Scientific Usage & Irrigation Settings
Reasonable timing and watering habits directly affect plant growth and water-saving efficiency.
3.1 Best Watering Time & Duration
• Recommended time: 6:00–8:00 AM or 18:00–20:00 PM
• Avoid watering at noon under high temperature to reduce water evaporation and leaf burn risk.
Suggested watering duration:
• Balcony potted plants: 8–15 minutes
• Garden lawn: 20–30 minutes
• Vegetable garden: 15–20 minutes
• Succulents and drought-resistant plants: 5–8 minutes
Irrigation frequency:
• Summer hot weather: Once per day
• Spring & Autumn: Every 2–3 days
• Winter dormant period: Every 7–10 days or stop watering
• Rainy days: Manually pause irrigation or use a rain sensor for auto shutoff
3.2 Irrigation Mode for Different Scenarios
• Balcony: Use drip irrigation for precise root watering and keep the balcony clean.
• Lawn area: Use rotary micro spray nozzles for large and even coverage.
• Vegetable garden: Use atomizing soft mist to protect young seedlings and prevent soil compaction.
• Flower beds: Switch between micro spray and drip mode according to shallow-root or deep-root flower types.
• Overlong irrigation time leading to waterlogging and root rot.
• Running the system under direct strong sunlight to avoid fast evaporation and pipe aging.
• Ignoring abnormal water pressure that may damage pipes and nozzles.
4. Daily Maintenance & Lifespan Tips
With simple and regular maintenance, the micro spray irrigation kit can last 3–5 years stably.
• Clean the filter screen and spray nozzles every 1–2 months; clean more frequently if the tap water contains high sediment.
• Inspect pipelines, joints, and valves every season; replace cracked or leaking parts in time.
• Winter frost protection: In cold climate areas, completely drain all residual water from pipes, remove nozzles and filters, and store them in a dry, ventilated room to prevent freezing and cracking.
• When not in use for a long time, turn off the water supply, empty the pipeline, and store accessories properly.
5. FAQ – Frequently Asked Questions
Q1: What plants are suitable for the micro sprayer irrigation kit?
A: It fits almost all home gardening plants, including balcony potted flowers, succulents, garden lawns, shrubs, home vegetables, and various flower beds. It supports both micro spray and drip irrigation modes.
Q2: Can I install the irrigation kit myself without professional tools?
A: Yes. The kit adopts a quick plug-in design with complete accessories. No professional tools or experience are needed. Even beginners can finish installation within 30 minutes.
Q3: Can I realize fully automatic watering with a water timer?
A: Absolutely. Connect the irrigation kit with a water timer, set the watering time, duration, and frequency, and the system will run automatically. It is perfect for busy workers and users who often travel away from home.
Q4: Does micro spray irrigation save water? How much water can it save?
A: Micro spray irrigation delivers water directly to plant roots, reducing evaporation and waste. The water-saving rate can reach 30% to 50% compared with traditional manual hose watering.
Q5: Are micro nozzles easy to clog? How to solve clogging?
A: Equipped with an inline filter, nozzles are rarely clogged. If blockage occurs, remove the nozzle, rinse it with clean water, or gently unclog the tiny hole with a fine needle.
6. Conclusion
A micro sprayer irrigation kit is an essential smart gardening tool for modern families. It combines water-saving performance, tool-free installation, strong compatibility, and automatic timed watering.
Whether you have a small balcony, private garden, or home vegetable garden, this universal irrigation kit keeps plants healthy all year round, saves your precious time, and makes home gardening easier, greener, and more enjoyable.
