How Far a Pump Sprayer Sprays?

A pump sprayer usually sprays about 15 to 20 feet. Your spray distance depends on the type of pump sprayer you use, the nozzle design, and how much pressure you create. For example, a fan-shaped nozzle or higher pump pressure can spread droplets farther, but coverage often drops as you spray further. Some pump sprayers use special nozzles and angles to improve spray reach and coverage. If you want the best results, you need to choose the right settings for your pump sprayer.

Key Takeaways

• Most pump sprayers can spray from 15 to 20 feet. The exact distance depends on the sprayer type, nozzle, and pressure. Using a solid stream nozzle at medium pressure sprays the farthest. Mist settings cover less area and spray closer. Keep your sprayer clean and take care of it to keep spraying far. This also helps stop clogs that make it work worse. Pump at a steady speed and do not pump too much. Over-pumping can turn the spray into mist and make it not go as far. For bigger jobs or tall plants, try battery-powered or motorized sprayers. These can spray farther and need less work.

Average Spray Range

Pump Sprayer Types

You will find several types of pump garden sprayer on the market, each with its own spray range and best uses. The most common types include manual hand pump sprayers, compact hand pumps, large-capacity hand pumps, backpack sprayers, and hose-end sprayers. Each type offers a different spray distance, which affects how you use them in your yard or garden.

Here is a table that shows the average spray range for different pump sprayer types:

You can see that most pump garden sprayer models reach about 15 to 20 feet. Some backpack sprayers with piston pumps can spray up to 20 feet, while hose-end sprayers usually cover less distance. Compact hand pumps work well for close-up jobs but do not reach as far.

Tip: If you want to spray tall trees or large areas, choose a large-capacity hand pump or a piston backpack sprayer for the best spray range.

Spray Distance by Setting

The spray distance of your pump sprayer depends not only on the type but also on the nozzle setting. You can adjust most pump garden sprayer nozzles to change the spray pattern. The two main settings are solid stream and mist.

Solid stream settings create a narrow, steady jet of liquid. This setting gives you the longest spray distance, often reaching 18 to 20 feet with a typical pump garden sprayer. Some high-pressure models or special designs, like the Slide Pump Sprayer, can reach up to 30 feet, but this is rare. Most manual pump sprayers do not exceed 20 to 30 feet in real-world use.

Mist settings break the liquid into tiny droplets. This pattern covers a wider area but reduces the spray range. Mist settings usually reach only a few feet, making them better for close-up work or delicate plants.

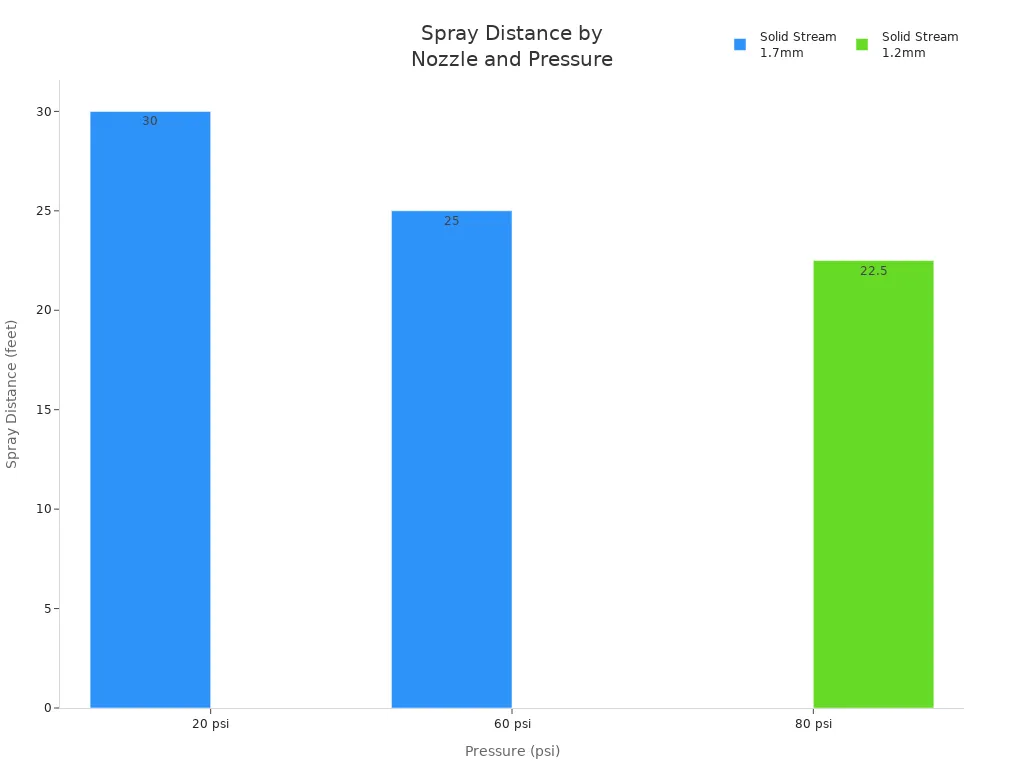

Here is a table that compares spray distance for different nozzle types and pressures:

You should remember that increasing pressure does not always increase spray distance. If you pump too much, the stream can break into mist, which lowers the effective range. The best spray range comes from a steady, solid stream at moderate pressure.

Note: Achieving more than 20 to 30 feet with a manual pump sprayer is difficult. Only a few special models can reach this distance, and most users report a spray range of 15 to 20 feet for regular pump garden sprayer models.

The spray range also changes over time. If you keep your pump sprayer clean and well-maintained, you will keep a consistent spray distance. Clogged nozzles or worn parts can reduce the effective range and make your sprayer less reliable.

Factors Affecting Spray Distance

Many things change how far your pump sprayer can spray. Knowing these things helps you use your pump garden sprayer better. You can get the best spray range for your job.

Nozzle Type

The nozzle type changes the spray shape and droplet size. Different nozzles make the spray go different distances. A stream or jet nozzle makes a straight spray that goes far. This gives you the longest spray range. Fan nozzles spread the spray wide, so they cover more area but do not go as far. Flooding nozzles make big drops that do not drift much, but they spray the shortest distance. Adjustable nozzles let you pick between a mist or a strong spray. This changes how far the spray goes. The table below shows how nozzle choices change spray distance and quality:

Tip: Pick a nozzle for your job. Use a stream nozzle for long spray. Use a fan nozzle for wide spray.

Pressure and Pumping

You make pressure by pumping the handle. More pressure pushes the liquid out faster and farther. Small hand pump sprayers usually spray 10-12 feet. Bigger sprayers can spray up to 20 feet. If you pump too much, the spray turns into mist and does not go as far. You need to balance pressure, nozzle, and liquid thickness for the best spray. Pumping a lot can make you tired, so find a level that works for you.

Fluid and Conditions

The liquid you use and the weather both matter. Thick liquids, like some fertilizers, make big drops that go farther but do not cover as much. Thin liquids break into small drops that can blow away in the wind. This lowers the spray range. Wind, temperature, and humidity all change how far you can spray. Wind makes drops drift and shortens spray distance. Hot, dry days make drops dry up before they hit the target. The best time to spray is early morning or late afternoon when it is cool and not windy.

Note: Always check the weather before you spray. Do not spray on windy or hot days. This helps your spray go where you want and reach farther.

All these things work together to change spray distance. If you know about them, you can adjust your pump sprayer for the best spray and coverage.

Increase Spray Range

You can make your pump sprayer spray farther by changing some settings and using helpful tools. Here are some easy ways to help your sprayer reach farther and work better.

Nozzle Adjustments

If you set your nozzle to a solid stream, it will spray the farthest. This setting makes the liquid shoot out in a strong line. It helps you reach high places or clean tough spots. But a solid stream only covers a small area, so you might need to spray more times to finish the job. Experts say air induction or pre-orifice nozzles are good too. These nozzles help stop the spray from drifting and keep the distance steady. Use your nozzle at higher pressure for the best spray. Clean your nozzles with a soft brush so they do not get clogged and lose distance.

Tip: Change how far apart your nozzles are and how high your boom is. This helps you get good coverage and spray as far as possible.

Pumping Techniques

How you pump the handle changes how far you can spray. Pump the handle about seven times to get the most pressure without leaks. Keep pumping while you spray, because pressure drops fast after you start. Hold the wand flat to the ground to spray farther. If you can, use a bigger hose to help the liquid move better and spray farther. Clean your sprayer and change old parts often to keep it working well.

Extensions and Accessories

You can use special tools to help your sprayer reach farther. Telescoping wands, like ones from My4Sons, can reach up to 14 feet. They help you spray high places without needing a ladder. Long hoses, sometimes up to 15 feet, let you cover big areas or spray from a car or truck. Many people say these tools save time and make spraying easier, especially for tall trees or big lawns. Pick wands that are light and do not leak, so they are easy to use. Always use a strainer when filling your sprayer to keep out dirt and help it last longer.

Safety Note: Wear gloves, goggles, and long sleeves when you want to spray farther. Check your sprayer before you use it, and always follow the label directions to stay safe.

Pump Sprayer Range Limits

Manual Limitations

Manual pump sprayers have clear limits when it comes to spray range. You create pressure by pumping the handle, but your strength and the sprayer’s design set the maximum pressure. Most manual sprayers use piston or diaphragm pumps. Piston pumps can reach up to 90 psi, while diaphragm pumps reach about 60 psi. Even at these pressures, you usually get a spray range of only 2 to 3 feet with a fine mist. If you try to pump harder, the spray may turn into mist and lose distance.

Here is a table that shows how different pump types affect pressure and spray range:

Manual sprayers also lose pressure as you spray, so the range drops quickly. You need to pump often to keep the pressure steady. This can make spraying large areas slow and tiring.

Note: Manual pump sprayers work best for small jobs or when you do not need to reach far.

Alternatives for Greater Range

If you need to spray farther or cover bigger areas, you have better options. Battery-powered and motorized sprayers give you steady, automatic pressure. These sprayers can handle larger tanks, so you can spray longer without stopping. You do not need to pump by hand, which saves time and effort.

• Battery-powered sprayers keep the pressure steady, so you get a longer and more even spray range.

• Electric and battery sprayers often hold 2 to 6 gallons, making them good for big lawns or gardens.

• For very tall trees or large fields, professional motorized sprayers can reach up to 40-45 feet. These use special pumps that create high pressure, sometimes over 500 psi.

• Adjustable nozzles and high-pressure pumps help you control the spray pattern and range.

Tip: Choose a battery-powered or motorized sprayer if you want to spray tall trees, large gardens, or need a longer spray range without getting tired.

You should match your sprayer to your needs. Manual sprayers are simple and cost less, but powered sprayers give you more range and make big jobs easier.

Most pump sprayers can spray about 15 to 20 feet. Many things can change how far you spray:

• The nozzle type and how you set it change the spray shape and distance.

• Keeping your sprayer clean and set up right helps it work well.

• The dip tube’s size and what it’s made of affect how the spray comes out.

• Parts that fit together right help your sprayer work better.

Use a solid stream nozzle, pump at a steady speed, and keep your sprayer clean for the best spray distance. If you want to spray bigger areas or reach farther, battery-powered or motorized sprayers are easier to use and need less work.

FAQ

How can you measure the spray distance of your pump sprayer?

You can measure spray distance by spraying water on a driveway or lawn. Use a tape measure to check how far the spray reaches from the nozzle to the farthest wet spot.

Why does your pump sprayer lose spray distance over time?

Clogged nozzles, worn seals, or low pressure can cause this problem. Clean the nozzle and check for leaks. Replace old parts if needed. Regular maintenance keeps your sprayer working well.

Can you use any liquid in a pump sprayer?

You should only use liquids approved for your sprayer. Thick or sticky liquids can clog the nozzle. Always read the sprayer’s manual and follow the manufacturer’s instructions.

What should you do if your sprayer will not reach as far as before?

Try these steps:

• Clean the nozzle and filter.

• Check for leaks or worn seals.

• Pump to the recommended pressure. If problems continue, replace damaged parts or contact the manufacturer.
