Dreading the tangled mess of dragging a heavy water hose across your yard for watering? Frustrated by the tedious cleanup after every outdoor task? You’re not alone. This common hassle plagues countless homeowners when tending gardens, cleaning courtyards, washing cars, or even handling emergency fire situations. But here’s the game-changer: a heavy duty aluminum water hose reel cart. It doesn’t just solve messy hose storage—it revolutionizes your outdoor water-related efficiency. Need a space-saving solution? This versatile tool supports both floor-standing and wall-mounted installation, making it the ideal choice for both professional and personal use.
Why Choose a Heavy Duty Aluminum Water Hose Reel Cart?
When it comes to hose reel carts, not all options are created equal. Cheap plastic or low-quality metal reels often break, leak, or rust over time, while bulky designs make maneuvering across different terrains a chore. The heavy duty aluminum water hose reel cart stands out for its superior performance and durability, making it a top choice for homeowners and professionals alike.
How to Use a Heavy Duty Aluminum Water Hose Reel Cart
The heavy duty aluminum water hose reel cart is extremely easy to use, with a full set of hardware accessories included for hassle-free installation. Follow these simple steps for smooth operation:
Connect to Water Source: Unfold the pre-connected hose. For wall-mounted installation, screw the mounting connector to the wall; for floor-standing use, place the reel cart on a flat surface. Firmly connect the hose to the faucet.
Unfold the Hose: Pull the hose gently to unfold it to the desired length. If long-time operation is needed, enable the locking mode to fix the hose.
Control Water Flow: Adjust the nozzle to select the appropriate spray pattern (such as mist, jet, shower) to adapt to different operation needs.
Retract the Hose: After the operation, simply turn the hand crank to retract the hose back into the reel. Ensure the hose is evenly wound to avoid knotting.
Practical Tip: When using on uneven terrain, ensure the reel cart is stable before unfolding the hose to prevent tipping. After wall-mounted installation, test whether the reel rotates smoothly and ensure there are no obstacles (such as windowsills, sockets) within the rotation range.
Product Featuresof
Hose Protection: Lifts the hose off the ground to avoid kinking, tangling, and puncturing. At the same time, it prevents damage to the hose from direct sunlight, extreme temperatures, and humid environments, significantly extending the service life of the hose.
Efficiency Improvement: Eliminates the need to run back and forth to turn the faucet on or off, saving water and time. The adjustable nozzle has multiple spray patterns to easily control water flow, and the extra-long hose can cover every corner of the yard.
Durability & Weather Resistance: The aluminum frame is rust and corrosion resistant, and can be used stably even in harsh outdoor environments. The sturdy structural design can withstand high-intensity use and extreme weather, ensuring long-term reliability.
Versatility & Portability: Supports both floor-standing and wall-mounted installation, saving space and adapting to different environments. The lightweight design with a built-in handle makes it easy to carry or drag on various terrains such as lawns and concrete.
Improper installation can affect performance and lead to safety hazards such as equipment falling or water leakage. Follow these step-by-step instructions for different installation types:

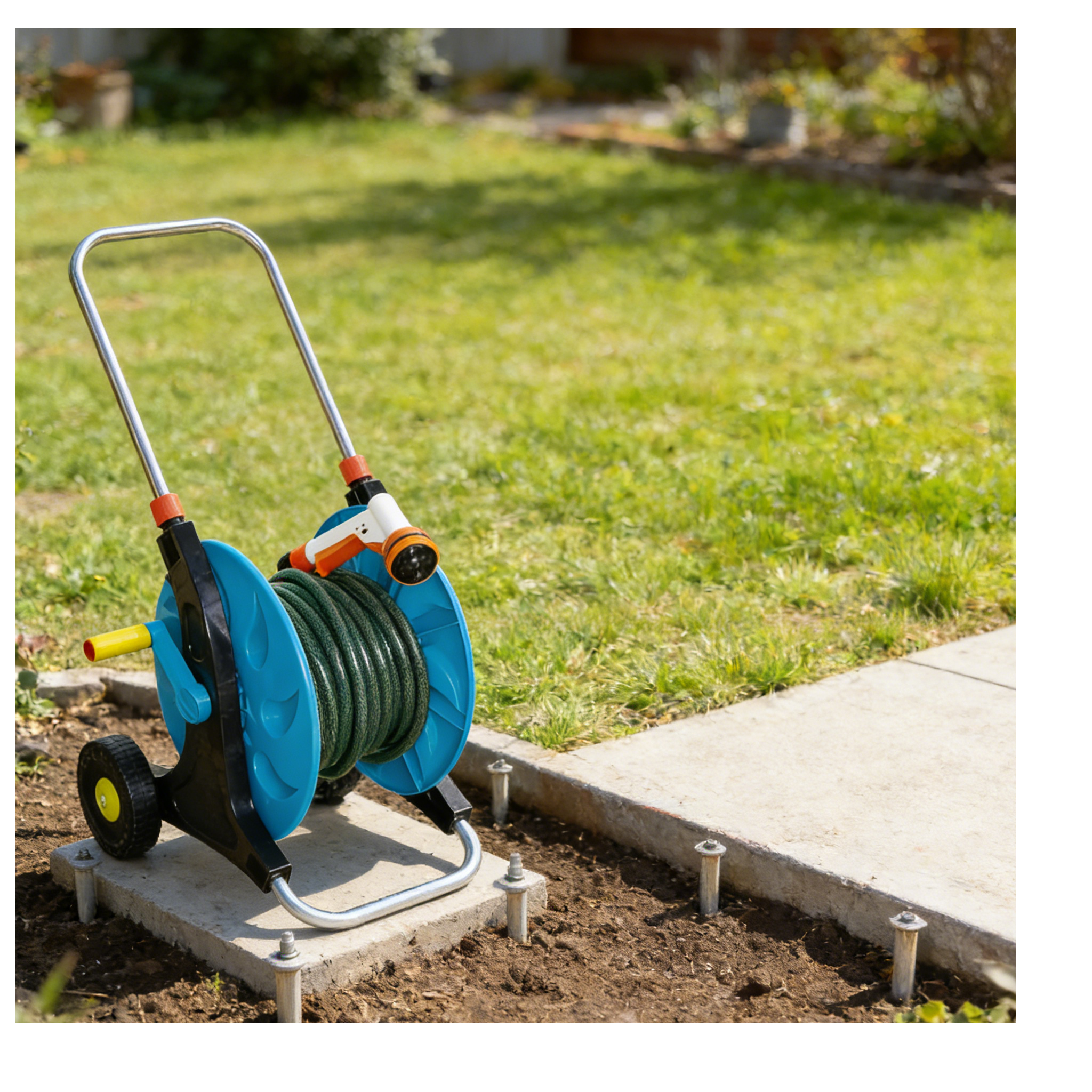

1. Floor-Standing Retractable Reel: Lawn & Concrete Solutions
Floor-standing reels require no drilling and offer high flexibility, but they need a flat, load-bearing surface (capable of supporting approximately 30kg, including the full hose weight). Refer to these guidelines:
Lawn Installation (Ideal for Seasonal Gardens & Renters)
• Select a slope-free area with compact soil. Mark the positions of the 4 fixing holes on the reel base.
• Use a hammer to drive the included “garden stakes” vertically into the marked points, ensuring a depth of at least 15cm for stability.
• Align the reel base with the stakes and snap it into place. Shake the base gently to check for looseness; if it wobbles, drive the stakes deeper.
Concrete/Paver Installation (Ideal for Patios & Garage Exteriors)
• Clean dust from the surface. Place the reel base in the desired position and mark the screw holes with a marker.
• Drill holes at the marked points using a 12mm drill bit, with a depth of approximately 20mm.
• Insert expansion anchors and tighten them with a wrench. Align the reel base with the screw holes and fix it in place. Finally, check if the base is level.

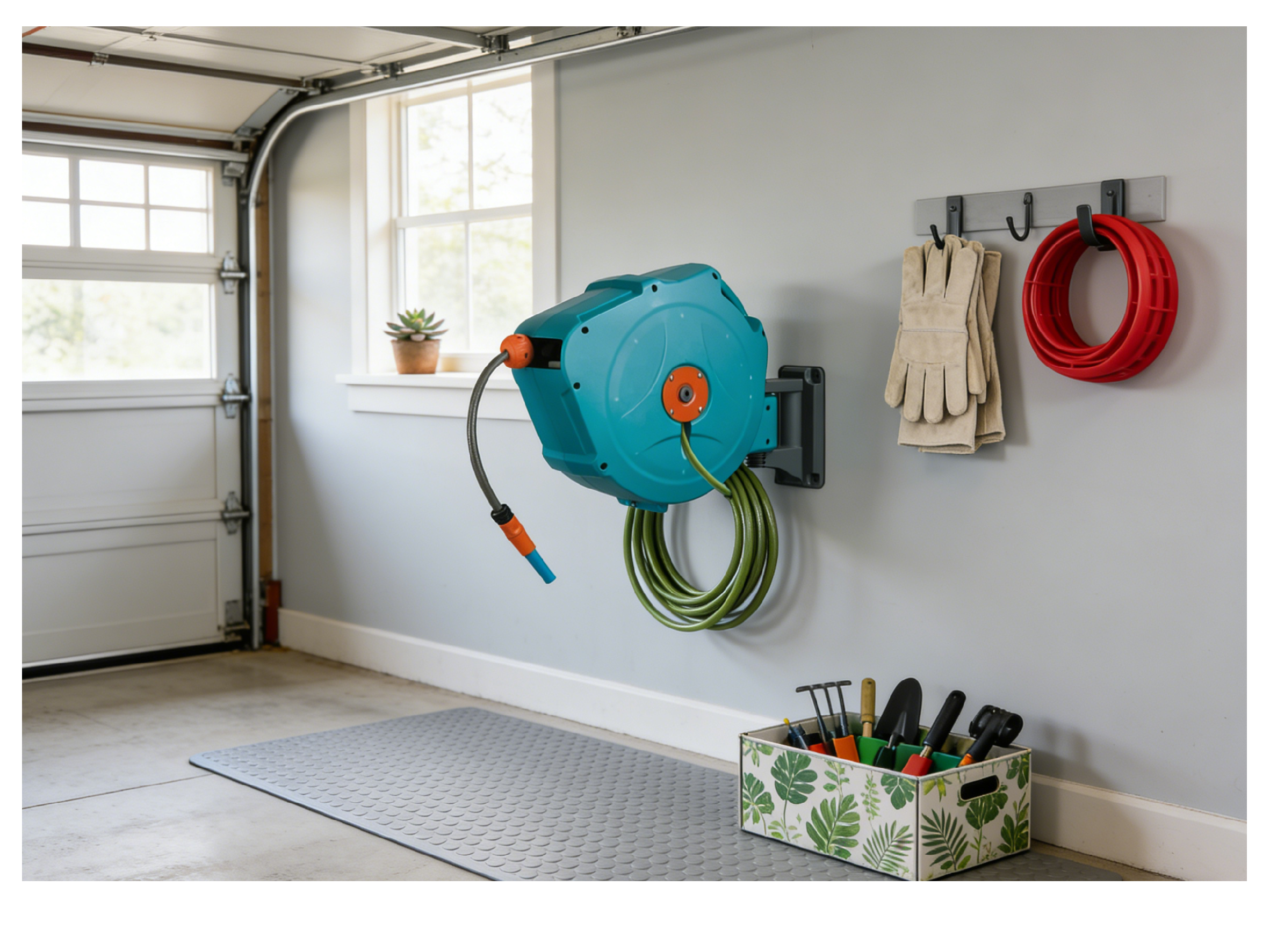

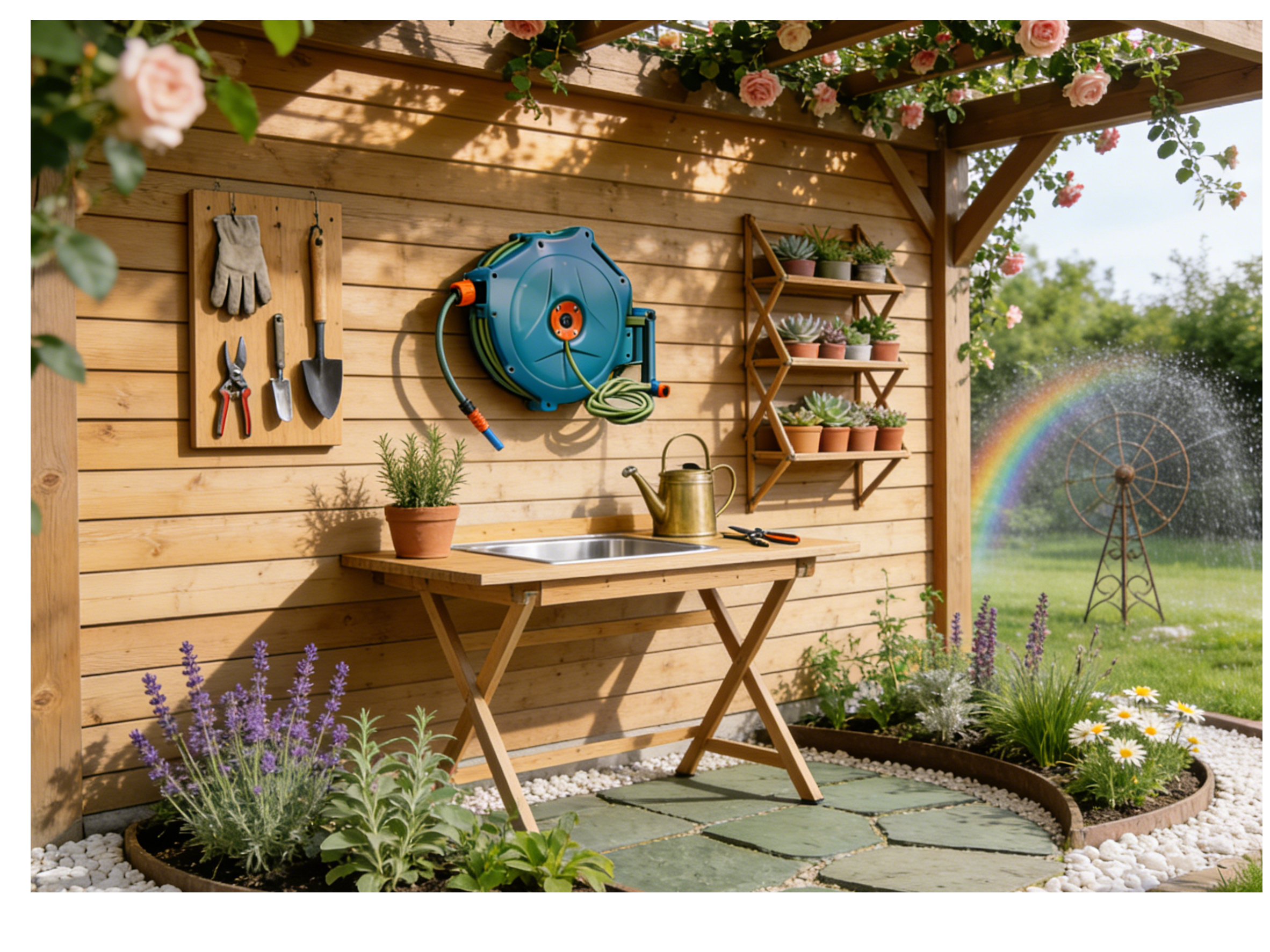

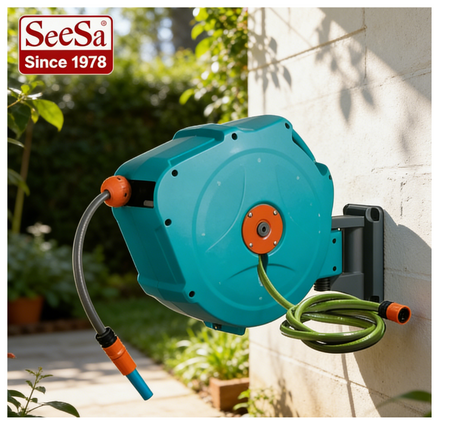

2.Learn to install and move a retractable hose reel
Wall-mounted reels save floor space but require ensuring the wall can bear the weight (approximately 5-10kg, including the reel and hose). Follow these steps:
• Prioritize concrete or solid brick walls; avoid lightweight partitions (e.g., drywall, hollow bricks) as they cannot support the weight.
• Use a tape measure to determine the installation height (recommended 1.2-1.5 meters from the ground for easy access). Mark the screw hole positions.
• Fix the bracket with the included expansion screws, ensuring each screw is tightened flush with the bracket. After installation, shake the bracket firmly to confirm no looseness.
• Hang the reel and test its rotation to ensure it moves smoothly and has no obstacles in its range of motion.
Key Maintenance Tips to Extend Reel Service Life
1. General Maintenance: Basic Cleaning & Lubrication
Perform these basic maintenance steps monthly for all reel types:
• Cleaning: Wipe the reel housing, handle, and interfaces with mild soapy water (avoid corrosive cleaners) to remove sand and dust. Wipe the hose surface with a damp cloth; use a small amount of dish soap for oil stains. For fire hose reels, additionally clean the hose surface to prevent dust buildup from affecting deployment speed.
• Lubrication: Apply lubricating oil to moving parts (reel shaft, gears, pushcart wheel axles). Use lithium-based grease for household models and fire-specific lubricants for fire reels to reduce friction and wear. Focus on lubricating the retraction spring of automatic retractable reels to avoid jamming.
• Inspection: Check for water leakage at interfaces (whether gaskets are aging), cracks or damage to the hose, and loose screws. Address issues promptly (e.g., replace gaskets, tighten screws).
2. Type-Specific Maintenance: Address Scenario-Specific Pain Points
Heavy Duty Aluminum Push-Type Hose Reel Maintenance Tips
Although the aluminum frame is rust-resistant, it is necessary to avoid contact with fertilizers and strong acid cleaners (such as car wash fluid residues). If contaminated accidentally, rinse it with clean water immediately; regularly check the welds of the storage basket to prevent it from falling when placing nozzles and gloves; check the air pressure of the 16-inch pneumatic wheels monthly to avoid difficulty in moving due to insufficient air pressure.
Floor-Standing Retractable Hose Reel Maintenance for Longevity
The automatic retractable function is prone to jamming due to sand and dust. Clean the gaps inside the reel every 2 weeks (you can use a soft brush to remove dust); when not in use for a long time, move the reel to a cool and dry place to avoid aging and cracking of plastic parts caused by direct sunlight.
3. Seasonal Maintenance: Cope with Extreme Weather
Winter Protection
Low temperatures are likely to cause the hose to freeze and crack. For household reels, drain the residual water in the hose (you can open the nozzle to drain the water completely); for fire reels, ensure the fire hose is dry, and wrap it with thermal insulation cotton if necessary; if the temperature is below 0℃, it is recommended to remove the household hose and store it indoors.
Summer Protection
High-temperature exposure will accelerate the aging of the hose. A sunshade can be installed for household reels; for fire reels, check if the fire hose is faded or hardened, and replace it in a timely manner if so; the rubber wheels of push-type reels should avoid long-term exposure to the sun to prevent cracking.
Proper Storage Method for Heavy Duty Aluminum Water Hose Reel Cart
1. Drain all water from the hose and reel before storage to prevent mold, mildew, algae, or bacteria from growing inside.
2. Clean the hose and reel with mild soapy water regularly to remove dirt, dust, or debris that may clog or damage the equipment.
3. Apply engine oil or grease to moving parts to prevent rust, corrosion, or friction from affecting performance.
4. Store the reel cart in a cool, dry, and ventilated place to avoid cracking, fading, or deformation of the equipment caused by extreme temperatures, direct sunlight, rain, snow, or frost.
Common Troubleshooting & Repairs
Most common issues with water hose reels (leakage, jamming, automatic retraction failure) can be solved with simple DIY steps, eliminating the need for frequent equipment replacement. Refer to these guidelines:
1. Leakage: 90% Caused by Gasket Issues
Interface Leakage
Turn off the water source, disassemble the interface, and check if the internal gasket (or O-ring) is aging or deformed. If the gasket is hard/cracked, replace it with a rubber gasket of the same specification (available in hardware stores). When installing, ensure the gasket is flatly placed in the sealing groove, then tighten the interface.
Hose Damage Leakage
If the damaged area is small (length < 5cm), cut off the damaged section, connect the two ends with a hose connector (matching the hose diameter, such as a 1/2-inch connector), and tighten it with a wrench; if the damaged section is long (> 10cm) or the hose is overall aging (such as PVC pipe used for more than 2 years), it is recommended to replace the hose directly.
2. Reel Jamming: Mostly Due to Sand Clogging or Insufficient Lubrication
Manual Reel Jamming
First, check if there is sand clogging in the gaps of the reel. After cleaning with a soft brush, apply lubricating oil to the rotating shaft, and rotate the reel back and forth several times to ensure smoothness.
Automatic Retractable Reel Jamming
Turn off the water source, disassemble the reel shell (need to unscrew the edge screws), clean the dust on the retractable spring, and apply special grease; if the spring is broken, replace it with a spring of the same model (it is recommended to contact the brand's after-sales service to avoid abnormal retraction force caused by self-replacement).
3. Automatic Retraction Failure: Spring or Locking Mechanism Issues
Failure to Retract
Check if the retractable spring is loose or broken. If it is loose, adjust the spring tension (refer to the product manual); if it is broken, replace the spring; if the spring is normal, the locking mechanism may be stuck, and it is sufficient to clean the sand at the locking buckle.
Excessive/Insufficient Retraction Force
Excessive force is likely to cause hose tangling, and the spring can be loosened appropriately; insufficient force will prevent complete retraction, and the spring needs to be tightened (some products have a spring adjustment knob, and if there is no knob, contact after-sales service).
FAQ: Common Questions About Heavy Duty Aluminum Water Hose Reel Cart
Q: How do you put a hose on a hose reel?
A: Most hose reels are equipped with a leader hose that can be directly connected to an outdoor faucet. There is a spigot on the hose reel for attaching your garden hose, which is a key part to check for quality. After attaching the hose to the reel, slowly crank the handle to wind the hose onto the reel, and you can use one hand to guide the hose to ensure even winding.
Q: Can you use a hose reel without a leader hose?
A: Yes, but a hose reel without a leader hose can only be used as a hose storage device. The inlet hose and swivel are essential for water flow during use; without them, water cannot pass through the reel. To use the hose, you need to pull the entire length off the reel before connecting it to the faucet, and detach it from the faucet first before rolling it back.
Q: How can I determine how much hose I need?
A: When determining the ideal hose length, the key factor is to avoid excessive length, as water pressure and flow rate decrease with longer hose distance. You only need a length that reaches the farthest watering point from the faucet. For a quick calculation, count the paces from the faucet to the farthest point and multiply by three to get the ideal length.
Conclusion
Whether you are a homeowner tending to a small garden or a professional in need of reliable watering equipment, this heavy-duty aluminum water hose reel cart from China SeeSa sprayer is a worthwhile investment. If you’re seeking a high-quality, heavy-duty water hose reel cart that perfectly balances portability, durability, and functionality.
